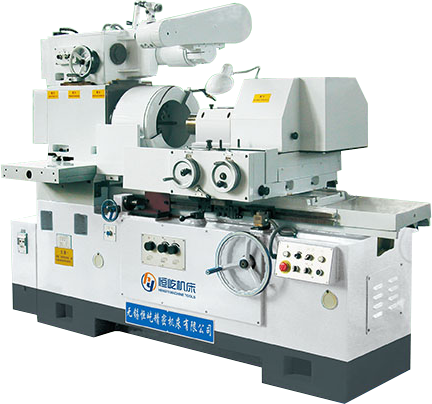

機床的主要特點 Main Characteristics
? 機床的進給及修整，由二個互不干涉的傳動機構執行，進給可采用手動或液動二種進給方式。
? 機床設有跳進、跳出機構，因此退出砂輪進行測量或修整后不必重新手動對刀。
? 工作臺啟動有液壓開關閥，確保裝卸和測量工件時的安全性。
? 機床在特殊訂貨，可配高速砂輪軸為18000轉/分，以適宜20-50mm孔的磨削。
? MD2120A在床頭箱頂部設有端磨裝置，并且端磨回轉與工作臺縱向運動有可靠的液壓連鎖。
? The feed and dressing movement are controlled by two independent systems. Manual and hydraulic feed movement can be used.
? The machine is equipped with a jumping device, therefore,it is unnecessary to reset the machine after measuring or dressing.
? The table is equipped with a hydraulic switch valve to ensure safely during loading and unloading and unloading workpieces.
? The machine is provided with a grinding spindle of 18000rmin which is capable of grinding bore diameter ranging bore diameter ranging from 20 to 50mm
? An endface grinding device is provided on the top of the workhead.The is a hydraulic interlock system between the swivel of the endface grinding device and the longitudinal movement of the worktable.
主要技術參數 Main Technical Specifcations
|
機床型號 |
M2120A |
MD2120A |
|
磨削孔徑
Bore dia ground
(mm) |
ф20~ф200 |
ф20~ф200 |
磨孔長度
Grinding depth |
ф50(mm) |
70 |
70 |
| ф200(mm) |
200 |
200 |
工件旋徑
Max.swing diameter |
罩內Within guard (mm) |
ф400 |
ф400 |
|
罩外Without guard (mm) |
ф600 |
ф600 |
|
床頭箱回轉角度
Swivel angle of workhead
(°) |
30° |
30° |
|
工作轉速
Work speed
(r/min) |
100~500，無級(stepless) |
100~500，無級(stepless) |
|
砂輪轉速
Wheel speed
(r/min) |
4000,5000,6000, 8000, 11000 |
4000,5000,6000, 8000, 11000 |
|
端磨轉速
Face wheel speed
(r/min) |
|
4650 |
|
工作臺行程
Max. travel of worktable
(mm) |
600 |
600 |
|
工作臺運動速度
Worktable moving speed
(m/min) |
0.1~6 |
0.1~6 |
|
工作臺修整速度
Worktable dressingng speed
(m/min) |
0.1~2 |
0.1~2 |
|
進給分辨率
Feed resolution
(mm) |
0.002 |
0.002 |
|
機床總功率
Machine total power
(kw) |
≈9 |
≈9 |
|
機床外形尺寸
Overall dimension
(mm) |
2100×2120×1700 |
2100×2120×1950 |
|
機床重量 Weight of machine
(kg) |
3600 |
3800 |
機床工作精度Grinding Accuracies
|
機床型號 |
M2120A |
MD2120A |
|
圓度 |
Bore roundness |
(mm) |
0.003 |
0.003 |
|
圓柱度 |
Cylindricity of bore |
(mm) |
0.005 |
0.005 |
|
內孔粗糙度 |
Surface roughness of bore |
(μm) |
Ra0.4 |
Ra0.4 |
|
端面粗糙度 |
Surface roughness of endface |
(μm) |
|
Ra0.8 |
|
