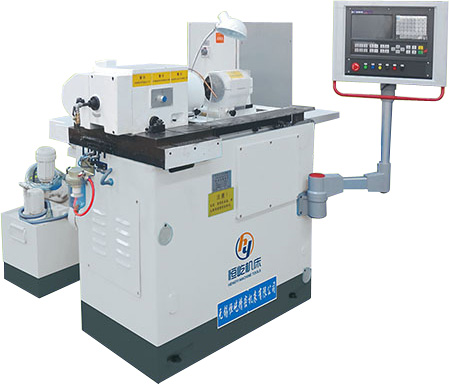

| MK215D 數控內圓磨床 |
|
機床的主要特點 Main Characteristic
? MK215D為二軸不帶全封閉罩殼數控內圓磨床。
?本機型為獨立式電器箱布局。
?機床導軌采用雙V型預加負荷，高精度十字交叉滾柱導軌，精度高，剛性好。
?機床采用高速電動砂輪軸，由靜止變頻器供電，能耗低，噪音小。
?進給機構采用伺服電機控制滾珠絲桿進行進給及修整補償。電氣控制系統采用廣數系統產品。
?機床磨削參數可通過觸摸屏輸進輸出，可實現人機對話，操作簡單方便。
?機床伺服系統控制的進給具有精度高、誤差小、速度快的特點。
?Model MK215D Two-axis CNC Internal Grider is adopted which is not totally endosed with guards.
?Independent electrical is used.
?Dual-V preloadcd & high precision crossed roller rolling guidcway is adopted, thus providing high accuracy and good rigidity.
?High speed & high power electric grinding wheel spindle is driven by the static freq. Inverter with the features oflower consumption & noise.
?The feed mechanism is driven by the servo motor through ball screw to perform feed dressing compensation. The Mitsubishi electric contril system is used.
?The touch screen can be used for conveient operation.
?The servo system can be sued to control the feeding amout, featuring high precision, and small error and fast speed.
主要技術參數 Main Technical Specifcations
機床型號
|
MK215D
|
磨削孔徑
|
Bore dia ground
|
(mm)
|
ф3?ф5
|
磨孔深度
|
Max.depth of bore to be ground
|
(mm)
|
80
|
工件旋徑Max.swing diameter
|
罩內 Within guard
|
(mm) |
ф180
|
罩外 Without guard
|
(mm) |
ф220
|
床頭箱回轉角度
|
Swivel angle of workhead
|
(°)
|
30°
|
工作轉速
|
Work speed
|
(r/min)
|
280，400，560， 800
|
砂輪轉速
|
Wheel speed
|
(r/min)
|
24000， 60000
|
工件電機功率
|
Work motor power
|
(kw)
|
0.45/0.75
|
砂輪電機功率
|
Wheel motor power
|
(kw)
|
7
|
油泵電機功率
|
Oil pump motor power
|
(kw>
|
0.55
|
靜止變頻器功率
|
Static frequericy converter power
|
(kw)
|
8
|
機床外形尺寸
|
Overall dimension
|
(mm)
|
1800×1450×1700
|
機床重量
|
Weight of machine
|
(kg)
|
≈ 2000
|
Z軸分辨率
|
Resolution of Z axis
|
(mm)
|
0.001
|
X軸分辨率
|
Resolution of X axis
|
(mm)
|
0.001
|
機床工作精度Grinding Accuracies
機床型號
|
MK215D
|
內孔圓度
|
Bore roundness
|
(mm)
|
0.002
|
內孔圓柱度
|
Cylindricity of bore
|
(mm)
|
0.003
|
內孔尺寸分散
|
Size deviation of bore
|
(mm)
|
0.01
|
內孔表面粗糙度
|
Surface roughness of bore
|
(μm)
|
Ra0.4
|
|
