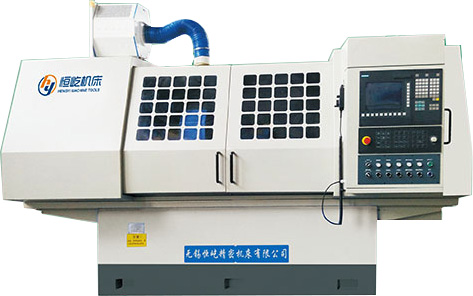

| MK2120A 數控內圓磨床 |
機床的主要特點 Main Characteristics
?機床采用德國西門子828D SL或發那科Oi-TD系統，伺服電機均由數字量控制，有很強的編程功能，可實現插補和聯動功能。
?二軸均由伺服電機驅動滾珠絲杠，傳動鏈簡單可靠，可實現無間隙、高靈敏度運動。
?機床可配置液壓薄膜夾具，液壓動力卡盤等，夾持精度高，裝卸工件方便。
?工件箱采用高箱度套簡主軸結構，精度高，便于維修，工件主軸驅動由交流變頻電機經過多楔帶作無極調速。
?砂輪主軸采用大功率、高剛性電動砂輪軸，由精止變頻器驅動。
?機床電箱為獨立電箱。
?Siemens 828D or Fanue Oi-c system is used.the servo motor controlled numerically has good programming capacity forinterpolation and linkage motion of axes.
?Gri wheel fed & reci.movement can be achieved by the serro motor through ball Ieadscew. thus ensuring gap elimination movement.
?Either hyd diaphragm chuck or hydraulically-operated chuck is available, thus ensufing high clamping accuracy & convenient loading.
?Cartridge-type workspindle is driver by AC freq conversion motor though poly-vkelt which its stepless speed-regulation can be performed by the freq inver
?High power & high rigidity electric gri wheel spindle is driven by a static frequency inverter.
?Independent electrical cabinet is used.
主要技術參數 Main Technical Specifcations
機床型號
|
MK2120A
|
磨削孔徑
|
Bore dia ground
|
(mm)
|
ф20~ф 200
|
磨孔長度
|
Grinding depth
|
(mm)
|
200
|
工件旋徑
Max.swing diameter
|
罩內 Within guard
|
(mm)
|
ф460
|
罩外 Without guard
|
(mm)
|
ф600
|
床頭箱回轉角度
|
Swivel angle of workhead
|
(°)
|
30°
|
床頭箱橫向移動雖
|
Cross movement of workhead
|
(mm)
|
150
|
工作臺行程
|
Max. travel of worktable
|
(mm)
|
500
|
砂輪架行程
|
Max. travel of wheelhead
|
(mm)
|
250
|
工作臺（Z軸）運動速度
|
Speed of worktable movenment (Z axis)
|
(m/inin)
|
0~10
|
砂輪架（X軸）運動速度
|
Speed of whcclhcad movennient (X axis)
|
(m/min)
|
0~5
|
Z軸分辨率
|
Resolution of Z axis
|
(mm)
|
0.001
|
X軸分辨率
|
Resolution of X axis
|
(mm)
|
0.001
|
工作轉速
|
Work speed
|
(r/min)
|
30~600，無級(stepless)
|
砂輪轉速（根據具體零件選）Wheel speed (as per part)
|
(r/min)
|
24000
|
機床總功率
|
Machine total power
|
(kw)
|
28
|
機床外形尺寸
|
Overall dimension
|
(mm)
|
3100×1680×1900
|
機床重量
|
Weight of machine
|
(kg)
|
4500
|
機床工作精度Grinding Accuracies
機床型號
|
MK2120A
|
內孔圓度
|
Bore roundness
|
(mm)
|
0.002
|
內孔圓柱度
|
Cylindricity of bore
|
(mm)
|
0.004
|
內孔表面粗糙度
|
Surface roughness of bore
|
(μm)
|
Ra0.4
|
內孔尺寸分散
|
Size deviation of bore
|
(mm)
|
0.015
|
端面對內孔垂直度
|
Parpendicularity of endface to I.D center line
|
(mm)
|
0.012
|
端面粗糙度
|
Surface roughness of endface
|
(μm）
|
Ra0.8
|
夾持接圓對內孔跳動(針對齒輪類零件)
|
Runout of pitch circle to be held relation to I.D(for gears)
|
(mm)
|
0.04
|
|
